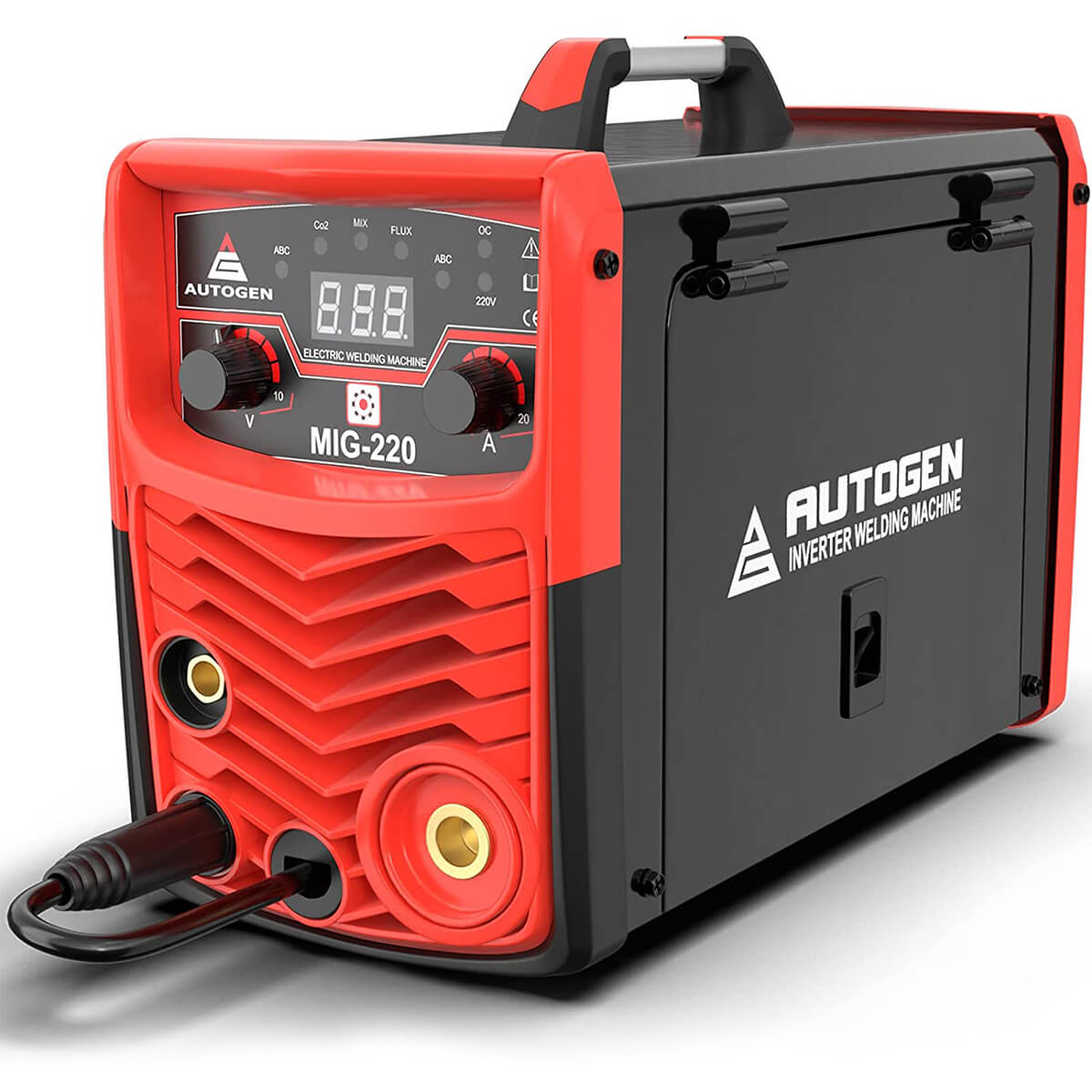

220A MIG Welder 3 in 1 Flux MIG/Lift TIG/ARC Stick Welder


  • Brand: AUTOGEN
  • Availability: In Stock
  • SKU: MIG220-3IN1

  • 12 Months Warranty
  • Dual Voltage, Lift Tig Function
  • 3-in-1 MIG welding machine, suitable for Stick, Lift TIG, Flux MIG
  • A wide range of uses, suitable for basic DIY such as household welding, hanger, etc
  • Equipped with multiple protection functions, such as over current protection, overload protection, and temperature control.
  • Product Image Display


    Dual Voltage, Lift Tig Function: This MIG-220 is 110V/220V dual voltage MIG welder, with a Lift TIG function, ARC(MMA) / MIG 3 in 1. Gas/gasless modes all are available. Note: TIG Torch is not included. It can be used for welding various metals. Meet different welding requirements. When using MIG, just adjust the current and the voltage will change automatically.
    85% Duct Cycle, Powerful Machine: Up to 220A output current that can weld mild up to 3/16 inch (4.5mm) plate. Duty cycle: 85%. Built-in Hot-start makes the arc strike easier, Anti-stick can remove the electrode from the workpiece easily, and Arc-force provides smoother welding and deeper penetration.
    Adjustable Welding Speed: AUTOGEN MIG welder has a 6x current setting, adjustable current range 20A-220A, and multi-speed variable feed control, to perfectly manage flux core of thin steel, stainless steel or aluminum metal plate, and even thicker steel welding.

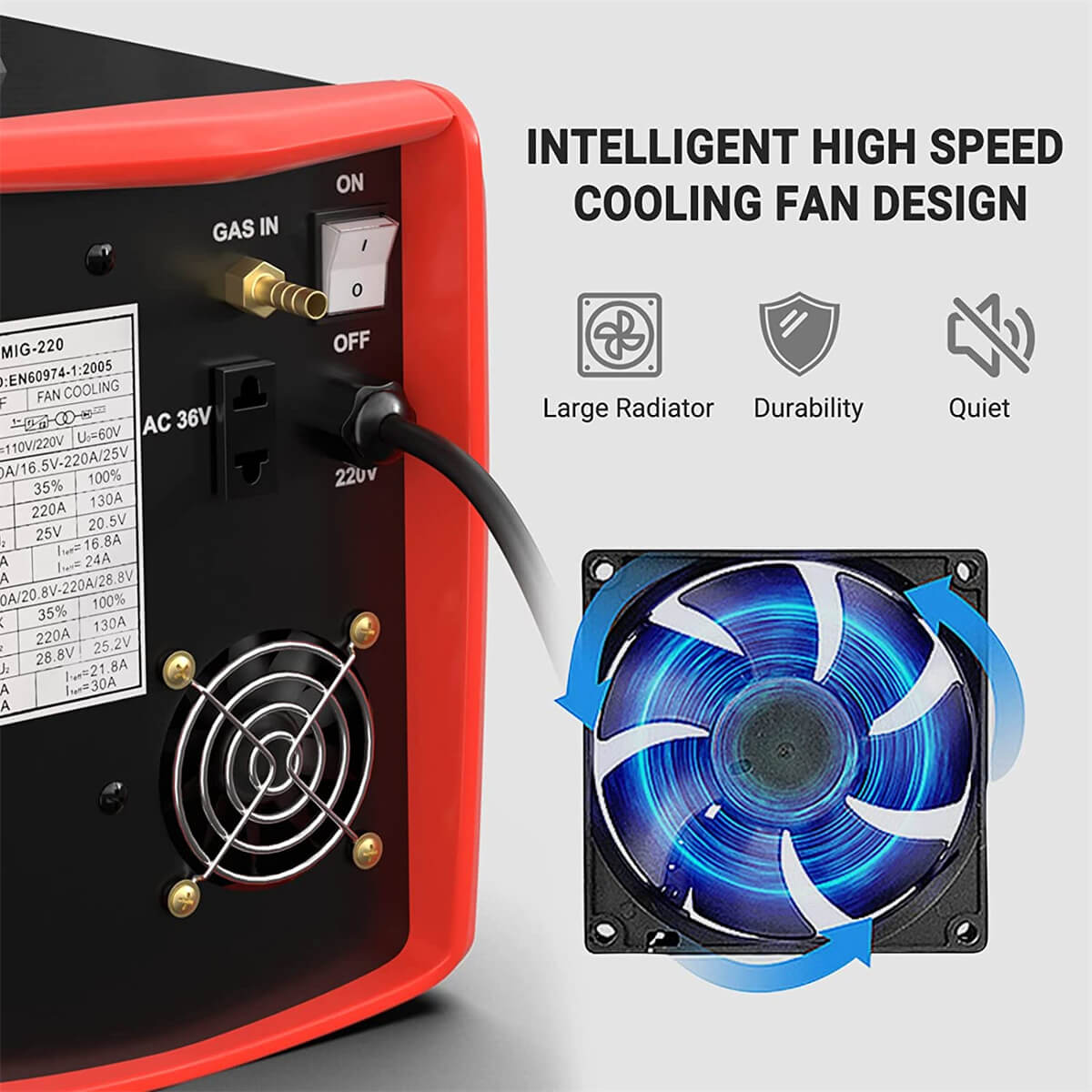

    Multiple Protection: Equipped with multiple protection functions, such as over-current protection, overload protection, and temperature control. If the duty cycle is exceeded. If overloaded, it will trip cutting the power supply to the motor whilst running the fan to cool down the motor.
    Multiple Use: Our stick welder is a wide range of uses-suitable for basic DIY such as household welding, hanger, covering, guardrail, repair, maintenance, metal fabrication, farm & road equipment, etc. Many kinds of metals can be used, for example, stainless steel, iron, carbon steel, etc.

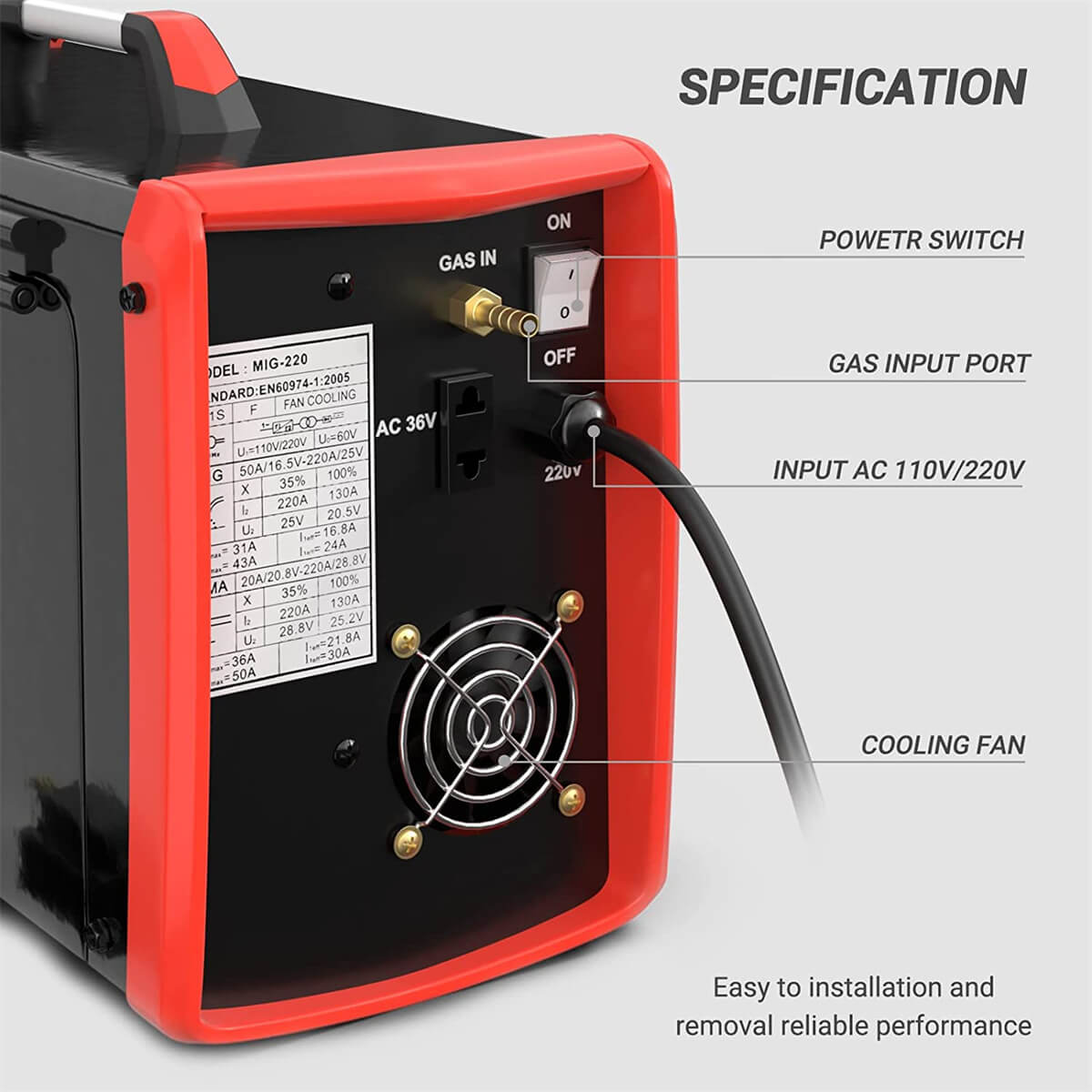

    Input Voltage: 110(120)V/220(230)V
    Input Current: 37.5A(110V)/22.4A(220V)
    Rated Duty Cycle: 85% (220A)
    Protection Class: IP21S
    Insulation Class: F
    Output Voltage: 15-22V
    Max. Output Current: 220A
    No Load Voltage: 59V
    Tip: TIG is optional(need to buy an extra tig lift torch, not included inside the product)

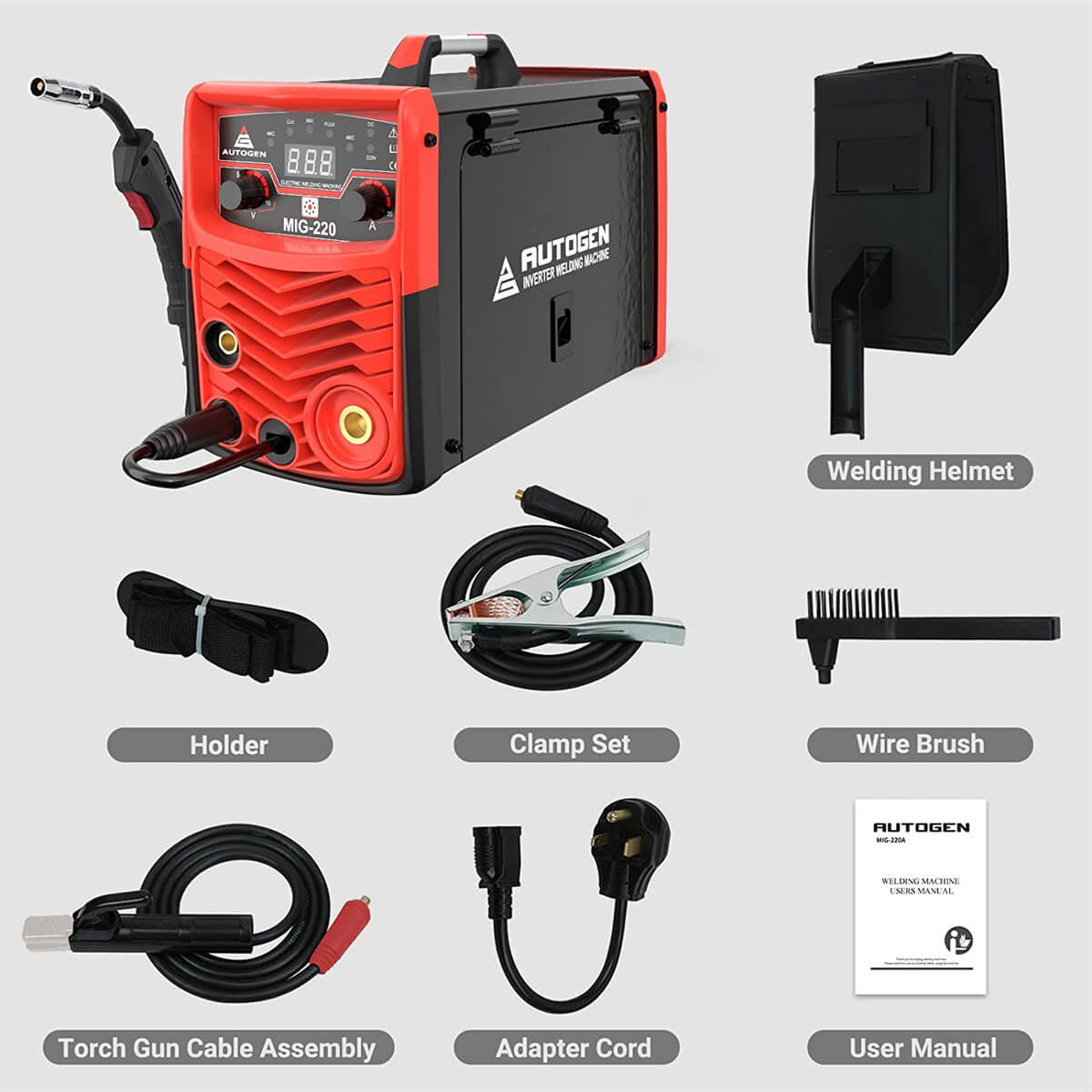

    Package Content

    220A MIG Welder x 1
    Ground Cable with Clamp x 1
    Electrode(Stick) Holder x 1
    Instruction Manual x 1
    Brush x 1
    Welding Helmet x 1
    220V-110V Adapter Cord x 1
    Torch Gun Cable Assembly x 1


    12 Months
